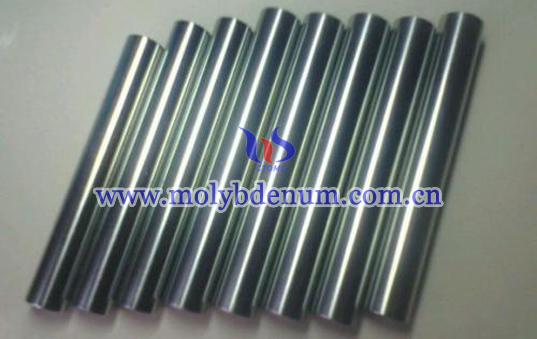

Molybdenum Electrode Bar and Plate
In molybdenum electrodes, rod, bar, plate are also classified according to their unite weight. Unit weight of molybdenum rod is not more than 80kgs, molybdenum bar 70kgs, and molybdenum plate 40kgs. Their appearance is bright silver gray metallic luster, and they can be fabricated according to customers' drawing.
In order to illustrate these products well, a table following is shown.
| Purity | Mo>99.93% | ||||||||
| Density | >10.15g/(cm3) | ||||||||
| Dimension | (3 - 25)* (50 -500) *L L<800mm | ||||||||
| Grade | The impurity content accords with GB3876-83 standard | ||||||||
| Fe | Ni | Al | Ca | Si | Mg | C | N | O | |
| Mo-1 | 0.01 | 0.005 | 0.002 | 0.002 | 0.01 | 0.002 | 0.01 | 0.003 | 0.008 |
The application of molybdenum bar is differ from molybdenum plate.
Molybdenum electrode bar is widely used as furnace,electric boosting glass kiln electrode.
Molybdenum electrode plate is dark brown, but silver gray metallic luster if washed by the alkali. Molybdenum electrode plate can be used as various kinds of heating equipment of glass fiber kiln,liquid-flow hole panel, etc.
Other types of molybdenum electrodes
| Electrode kinds | Molybdenum sheet | Molybdenum rod | Electrode with screw thread | Other nonstandard shape | ||
| Specification(mm) |
Height | 1.20 | Dia. | 100 | Standard according to customers drawing | Can be processed according to clients drawings |
| Length | ≤600 | Len. | 1001700 | Trapezium | ||
| Width | ≤250 | Taper | ||||
